Product introduction:
This motorized transfer cart is powered by battery, traveling cable, rail, generator, or another way. This series of Industrial Railroad Transfer Carts is able to run between two perpendicular tracks and the car is also could run on an L-form track or S-form track or curved track. Also, a motorized transfer handling vehicle is specially designed to cooperate with a crane, which has been applied in many factories to transfer conductor or materials from one workshop to another.
Features of motorized transfer carts :
1.The series transfer carts have adjustable speed, saves transportation time, and are easy to operate by wireless remote control.
2.The components adopt Chinese military-grade components and can also be matched with Siemens and other partner components.

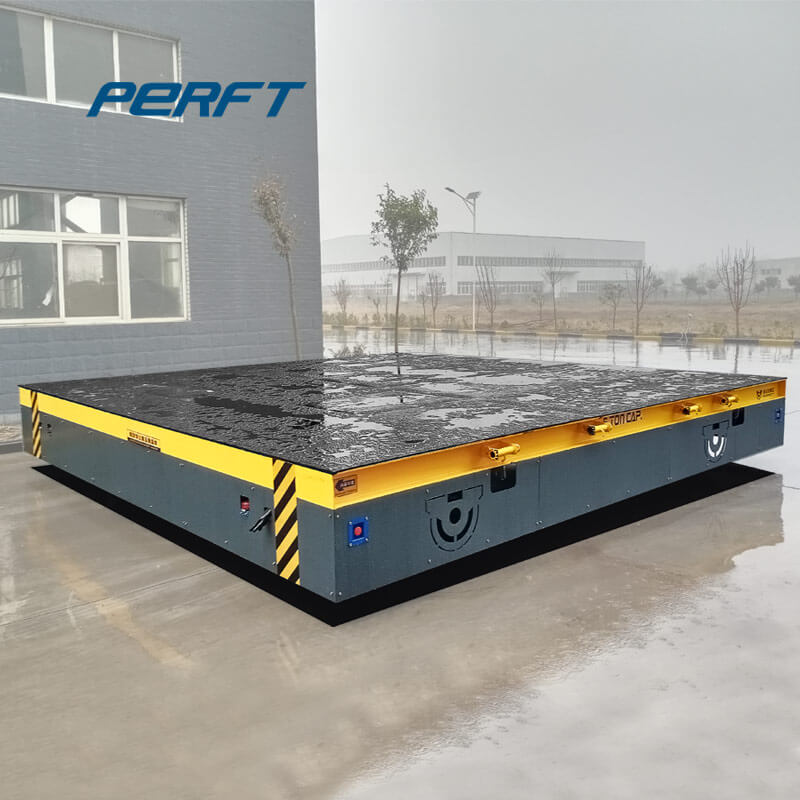

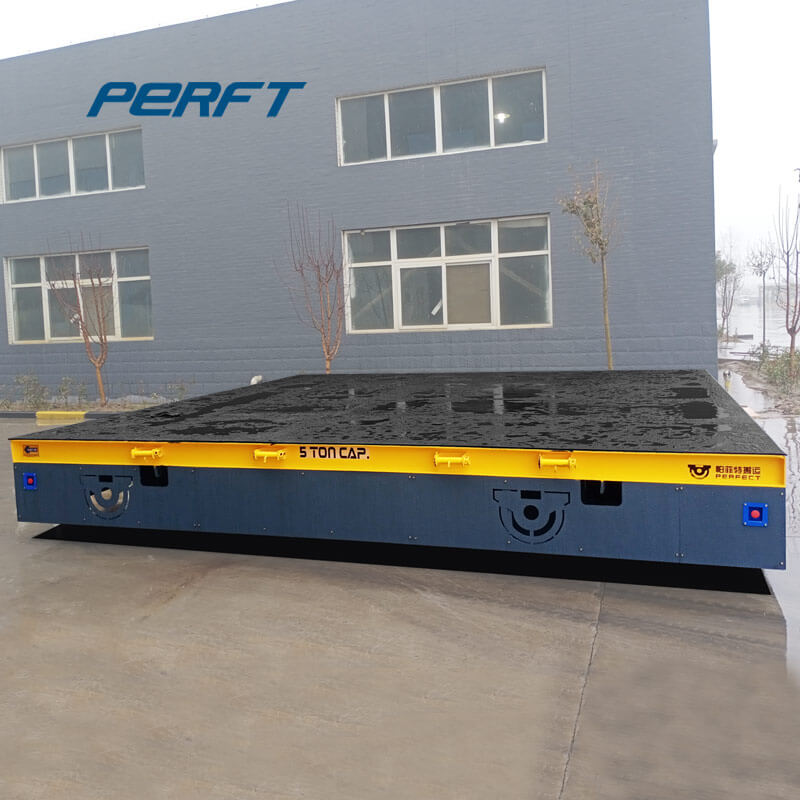

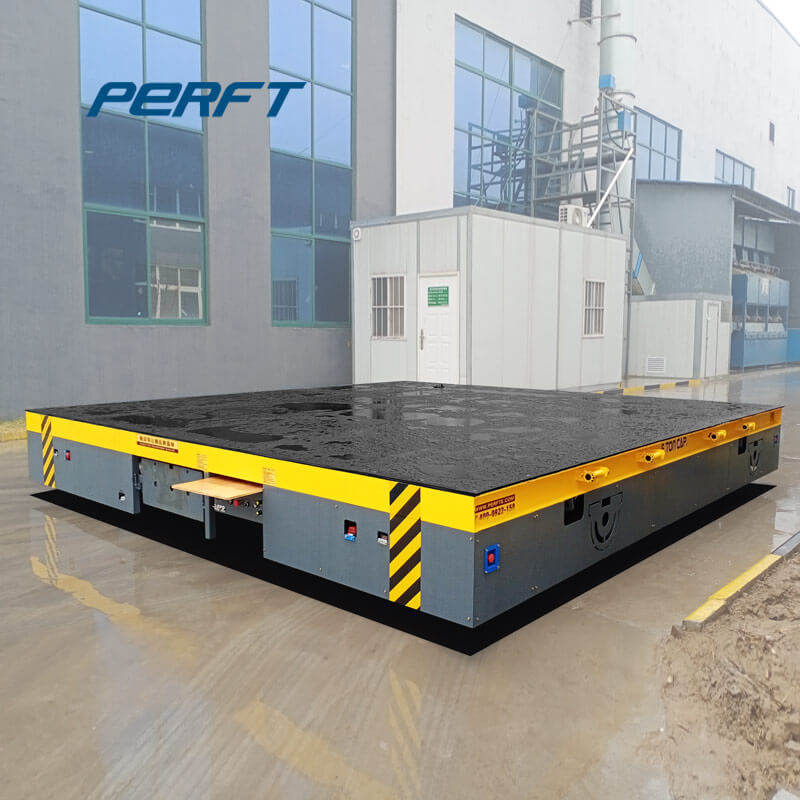

3.The trackless transfer carts on the cement floor can realize 360° direction steering, which is suitable for long-distance, low-frequency unfixed routes.
| Model | BWP-2T | BWP-50T | BWP-150T | |
| Rated load (T) | 2 | 50 | 150 | |
| Table size | length(L) | 2000 | 5500 | 10000 |
| Width(W) | 1500 | 2500 | 3000 | |
| Height(H) | 450 | 650 | 1200 | |
| Wheel Base (mm) | 1200 | 4200 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ500 | Φ600 | |
| Motor Power (KW) | 1 | 5 | 15 | |
| Battery Capacity(Ah) | 180 | 330 | 600 | |
| Battery Voltage(V) | 24 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 3.3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 174 | 265.2 | |
