Description

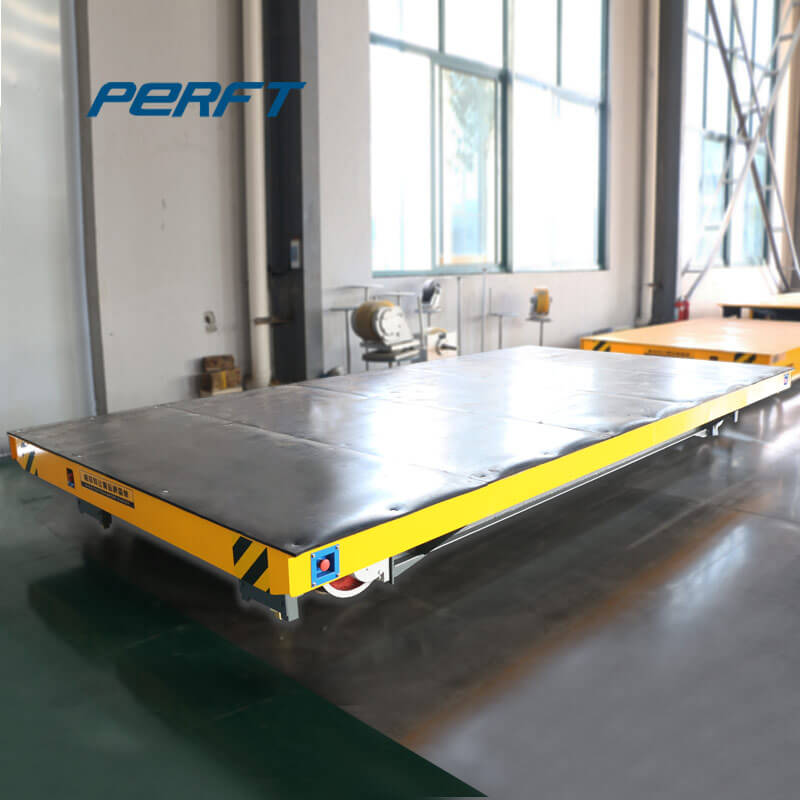

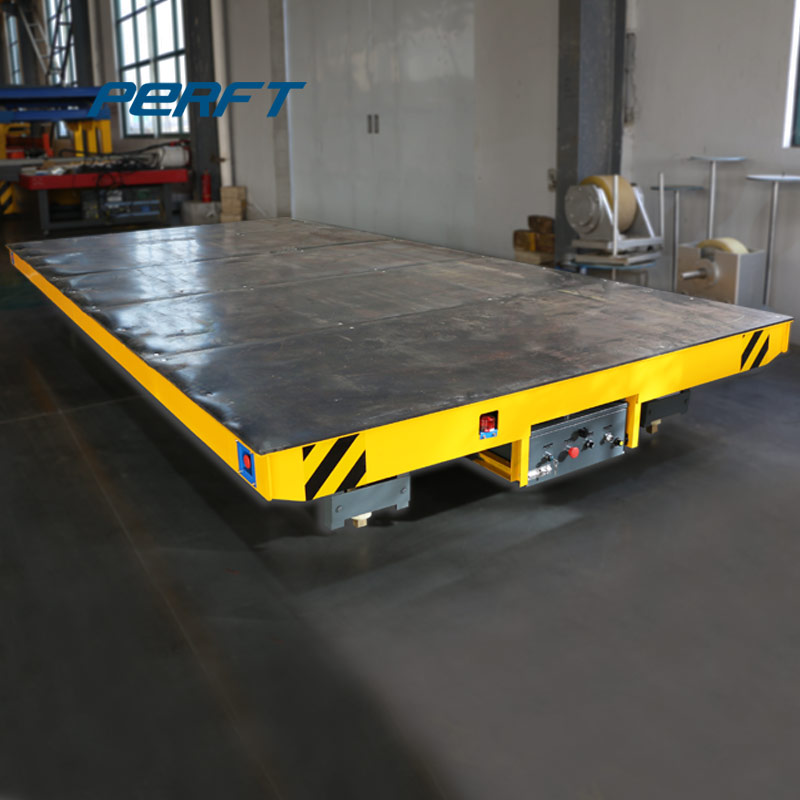

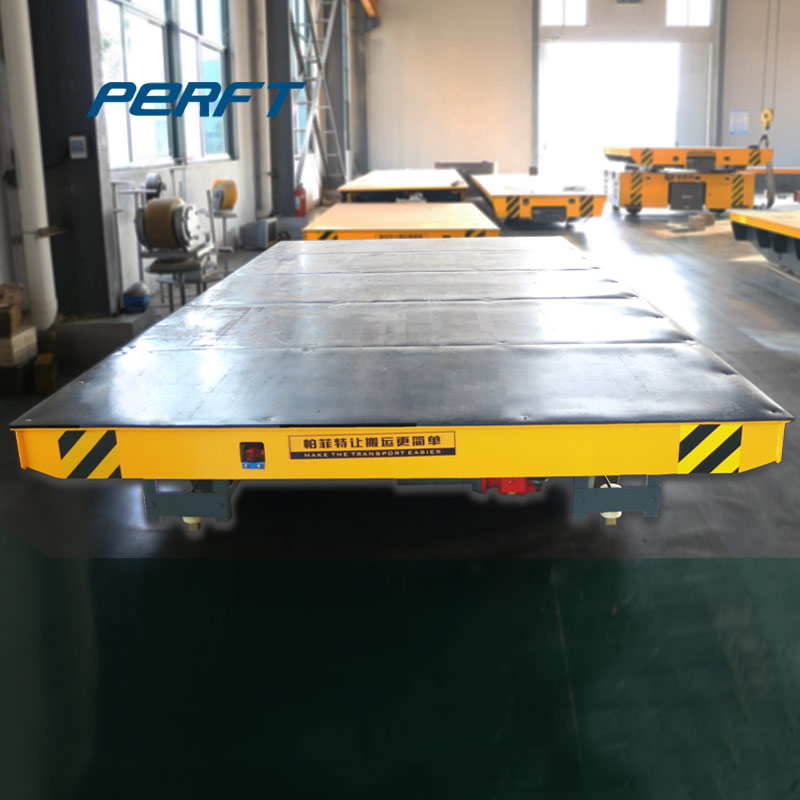

The working principle of the BDG series electric flat transfer carts is as follows: the AC 380V power supply is stepped down to the AC 36V two-phase through the transformer and connected to the two rails respectively. The wheels on the track flat transfer carts introduce the AC 36V power supply on the track into the vehicle’s electrical equipment. The box, through the rectifier module, rectifies the AC 36V to DC 36V and then controls the DC motor through the DC control system to make the flat start, stop, advance, retreat, speed regulation, and so on.
Advance
This series of flat transfer carts can be used in S-type tracks, curved tracks, and high temperatures. The flat transfer carts can be equipped with a car console and pedal. It can also be equipped with a hydraulic lifting system and automatic control. The flat-car DC motor has the advantages of stable starting, large starting torque, small impact on the reducer, low voltage, and long service life.
Application
This series of flat cars have safety and maneuverability and has high requirements for track laying (requires insulation treatment track). It is suitable for transportation with low load capacity (≤60t), high frequency of use, and medium and long-distance transportation. Not limited by distance, but the running distance is more than 70 meters, the number of transformers needs to be increased to compensate for the track pressure drop.
